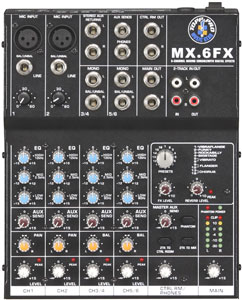

מיקסר MX-6FX

Input Channels

• Mono input channels
  • Microphone input - electronically balanced, discrete input configuration
  • Frequency response - 10 Hz to 55 kHz, +/ 3 dB
  • Distortion (THD & N) - 0.005% at +4 dBu, 1 kHz
  • Gain range - 0 dB to 60 dB (MIC)
  • SNR (Signal to Noise Ratio) - 115 dB
  • Line input - electronically balanced
  • Frequency response - 10 Hz to 55 kHz, +/ 3 dB
  • Distortion (THD & N) - 0.005% at +4 dBu, 1 kHz
• Stereo input channels
  • Line input - Balanced
  • Frequency response - 10 Hz to 55 kHz, +/- 3 dB
  • Distortion (THD & N) - 0.005% at +4 dBu, 1 kHz

Impedance

• Microphone Input - 1.4 k Ohms
• All Other Input - 10k Ohms or Greater
• Tape Out - 1k Ohms
• All Other Outputs - 120 Ohms

Equalization

• Hi shelving - +/- 15 dB @12 kHz
• Mid bell - +/- 15 dB @ 2.5 kHz
• Low shelving - +/- 15 dB @ 80 Hz

DSP Section

• A/D and D/A converters - 24-bit
• DSP resolution - 24-bit
• Type of effects - Vibraflange, Funky, Rockabilly, Bigstage, Vibrato1-4,Flanger1-4, Chorus1-4
• Presets - 16
• Controls - 16-position PRESET Selector, FX level, REVERB level, CLIP LED

Main Mix Section

• Noise (Bus Noise) -
  • Fader 0dB,Channels muted:-100dBr (ref:+4dBu)
  • Fader 0dB, All Input Channels Assigned and Set To UNITY Gain:-90dBr(ref:+4dBu)
• Max Output - +22 dBu Unbalanced,1/4'' Jacks
• AUX Sends max out - +22 dBu
• AUX Returns gain range -  ∞ to +15 dB

Power Supply(AC/DC Adaptor)

• Main voltage - USA / Canada 100-120 V~, 60 Hz
• Fuse Europe - 210-230 V~, 50 Hz, U.K. / Australia 240 V~, 50 Hz
• Power Consumption 15 Watts

Physical

• Dimension (W D H) - 185 mm x 230 mm x 35/55 mm
• Net weight - 1.4 Kg (3.09 lb)
• Shipping weight - 2.7 Kg (5.95 lb)
