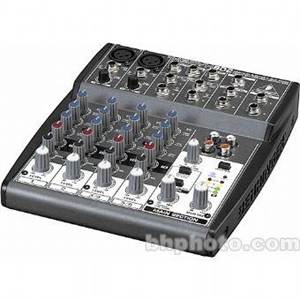

Behringer XENYX 802 - 8 Channel Stereo Output Compact Audio Mixer

From Behringer, the XENYX seriesaudio mixers are designed to provide real-world features and pristine audio fidelity while remaining cost effective and practical.

The XENYX 802 is a compact 8-channel audio mixer that fits within any budget. The mixer features 2 microphone inputs and 6 line level inputs. Inputs 3/4 and 5/6 are stereo paired for use with keyboards, player/recorders and other stereo devices. An additional stereo I/O is provided for connecting Tape and CD devices. The compact 802 is well suited for project recording, home video editing, small PA systems and more.

Key Features
•	8 Total Input Channels
	The XENYX 802 features a total of 6 line inputs on 1/4'' Phone connectors and two XLR microphone inputs.
•	Stereo Inputs
	Channels 3/4 and 5/6 feature stereo paired 1/4'' phone line inputs for keyboards, recorders and other stereo devices.
•	Phantom Power
	User switchable +48V phantom power is supplied to condenser microphones.
•	AUX Send / Return
	The 802 features stereo AUX send and returns for routing channels to external effects processors, monitors or recording devices.
•	Compact and Portable
	The 802's ultra compact profile is ideal for the road and easy storage.

Total # Of Inputs	8 Inputs
Mic/Line Inputs	2 Mic: 3-pin XLR 6 Line: 1/4'' TRS Phone
Stereo Line Inputs	2 Stereo: L/R Paired 1/4'' TRS Phone channels 3/4 and 5/6
In-Line Inputs/Returns	No
AUX Sends	Single Stereo 1/4'' Phone
AUX Returns	Stereo L/R Paired 1/4'' Phone
Inserts	No
BUS (Group) Outputs	Stereo Main Only: L/R 1/4'' TRS Phone
2 Trk Master I/O	CD/Tape - Input: L/R RCA Phono Output: L/R RCA Phono
ALT I/O	No
Monitor Outputs	Phones: 1/4'' Stereo
EQ Section	Low: 80Hz +/- 15dB High: 12kHz +/- 15dB
Solo/Mute	No
Channel Level Control	Rotary Controls
Trim/Gain Control	No
Phantom Power	+48V Phantom
Metering	Stere 4-segment Peak LED meters
Frequency Response	10Hz to 20kHz (-3dB)
Dynamic Range	not specified by manufacturer
Signal-to-Noise Ratio	110dB / 112dB A-weighted
Total Harmonic Distortion (THD)	0.005% / 0.004% A-weighted
Power Supply	13W USA/Canada 120V~, 60Hz, MXUL5 adapter
Dimensions	1.85 x 7.44 x 8.66'' (47 x 189 x 220mm) (HxWxD)
Weight	2.21 lbs (1 kg)
