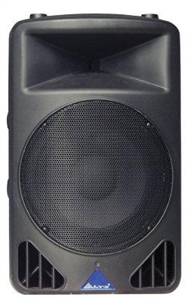

רמקול מוגבר אלטו PS-4LA

PS series presents complete line of PA cabinets made of strong and durable polypropylene. With models from 8" to 15" and real compression drivers across the line, ▲LTO PS range really offers options for a large numbers of Users from low power conference systems to large Live performances. Great attention has been put in details: All models feature trapezoid shape to facilitate the use as floor monitor and several fly points on bottom, top, side and back are provided for any possible fly configuration. Surprisingly, ▲LTO also introduce 12" and 15" 2 way models with a sophisticated 40 bit DSP built in. Look at the block schematics below and see the amazing flexibility offered by our DSP when compared to a traditional Xover circuit: Our PS4HA and PS5HA models include digital hum cancel, noise gate, multiband dynamic processor, 6 to 48dB Xover, speaker alignment and 20 bands of parametric equalizer ( 10 for woofer and 10 for tweeter) The amazing flexibility of our DSP even allowed us to create 3 different preset sound in our top model PS5HA: LIVE with key frequencies emphasized for the best sound reproduction in a live situation. STUDIO, with an astonishing flat frequency response. SUBWOOFER mode, to be used when the unit is connected to an external subwoofer.











Common Features:
‧Powered system type: analogue processor-PS 4LA,
                                  digital processor - PS 4HA
‧Mic / Line input on combo - XLR link out
‧Horn Coverage H°×V°: 90°H×45°V
‧Trapezoidal & Monitor shape
‧Dimensions (H×W×D): 660×396×384mm (26"×15.6"×15.1")

Specifications :
‧LOW output power: 150W RMS (EIAJ)
‧HIGH output power: 60W RMS (EIAJ)
‧Max SPL at 1m: 1119.5dB SPL continuous power
‧Impedance: Low 8Ω - High 8Ω
‧Frequency response: 55Hz / 20kHz ＋/－10dB
‧Crossover frequency: 2250Hz - Processor
‧Protection Low - High:Analog limiter /compressor
‧Low frequency: 12" / 318mm, 2" voice coil
‧High frequency: compression driver, 1" voice coil

‧Weight: 19.4Kg (42.8 lb)
