זוג מוניטורים אולפניים ICON SX-6A

SX-6A

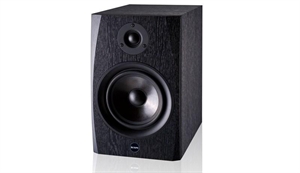

The ICON SX-6A series active studio monitor system provide a smooth response that is accurate and pleasant to listen to. Here are some of their main features:



- Compact and powerful with very precise sound reproduction.

- Two-way active studio reference monitor with ported tuned enclosure providing extremely accurate monitoring for

 recording studio, post-production and multi-media applications.

- 1”silk dome tweeter with neodymium magnet, plus heat sink and ferrofluid cooling provide smooth and sweet high

 frequency response.

-  6.5” copolymer butyl surround woofer provides tight and controlled low frequency response.

- Build-in Bi-Amp power module for low and high frequency drivers

HF: 40W / LF: 80W

- Active crossover uses a multi-pole design for linear response from bottom to top.

- XLR balanced input as well as unbalanced RCA input make connecting to most -10 dBV or +4dB signal source quick and easy.

- A/V shielded for multimedia applications providing clean operation near computer CRT monitors.

- Solid MDF construction

- "Vasorb TM" monitor rubber feet included

System:     Two-way active nearfield monitor
  Frequency Response (+/-3dB):     40 Hz - 21 kHz
  Bass Principle:     Bass reflex
  Tuning Frequency:     40 Hz
  Tweeter:     1" wide dispersion silk dome
  Woofer:     6.5” PPB cone with aluminum short
      circuiting ring and rigid aluminum
      basket
  Magnetically shielded/compensated:     Shielded and Compensated
  Cross over frequency:     2.6 kHz
  Cross over slope:     24 dB/oct (LP and HP)
  Input level for 85dB SPL @ 500-2000 Hz avg @ 1 m:     -15 dBu RMS @ 0 dB level setting
  Input connectors:     Balanced XLR connector
      Unbalanced RCA connector

General
  Power consumption:     Idle: 10W / Max: 140W
  Amplifier power:     Tweeter: 40W / Woofer: 100W
  Internal cabinet volume:     12.0 liters
  Weight:     10.0 kg (22.0lbs)
  Dimensions (WxHxD):     210 x 320 x 340 mm
      8.2“ x 12.6”x 13.4”
