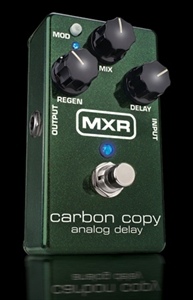

MXR m-169 Carbon Copy Analog Delay
 The MXR Carbon Copy Analog Delay features a completely analog audio path for the ultimate in rich, warm delay—made possible only by old-school bucket brigade technology.

This design boasts an amazing 600ms of delay time with optional modulation via a top-mounted switch and a simple, three-knob layout that controls Delay time, Mix (dry/wet blend), and Regen (delay repeats)—all in a pedal no bigger than a Phase 90.

In addition, two internal trim pots offer user-adjustable width and rate control of the modulation for even more tonal options. The Carbon Copy will take you from crisp ‘bathroom’ slap echoes to epic, Gilmour-esque delays with a twist of a knob. True hardwire bypass, single 9-volt operation, and stage-ready blue LEDs round out the package.

Specifications
-Input Impedance (Effect ON)- 1meg Ohm
-Output Impedance (Effect On)- 1K Ohm Max
-Max Input Level- +5dBV@500Hz (ref 1V RMS)
-Max Output Level- +8dBV
-Signal to Noise (Regen@Max CCW)-Mix@Max CW >-96dB ‘A’ weighted
-Mix@Max CW >-104dB ‘A’ weighted
-Delay Distortion- <1%@1kHz, -5dBV Input
-Delay Time- 20msec to 600msec
-Noise Reduction- 2:1 reduction ratio
-Modulation Speed- 0.2Hz to 2.2Hz
-Housing Dimensions- 4-3/4 inch x 2-3/4 inch x 1-9/32 inch
-Weight- 14oz.
-Housing Material- Zinc
-Bypass- True-Hard-Wire
-Power Draw- 26mA Max
-Power Requirement- Dunlop ECB-03 9VDC adapter with 5.5mm x 2.1mm positive barrel and negative center.
